Building conversational forms with FormFlow and Microsoft Bot Framework – Part 1

Forms are common. Forms are everywhere. Forms on web sites and forms in apps. Forms can be complicated – even the simple ones. For example, when a user completes a contact form they might provide their name, address, contact details, such as email and telephone, and their actual contact message.  We have multiple ways that we might take that information, such as drop down lists or simply free text boxes. Then there is the small matter of handling validation as well, required fields, fields where the value needs to be from a pre-defined set of choices and even conditional fields where if they are required is determined by the user’s previous answers.

So, what about when we need to get this type of information from a user within the context of a bot? We could build the whole conversational flow ourselves using traditional bot framework dialogs, but handling a conversation like this can be really complex. e.g. what if the user wants to go back and change a value they previously entered?  The good news is that the bot framework has a fantastic way of handling this sort of guided conversation – FormFlow.  With FormFlow we can define our form fields and have the user complete them, whilst getting help along the way.

In this post I will walk through what is needed to get a basic form using FormFlow working.

Building a basic form with FormFlow

Let’s look at a basic example of building a form out with FormFlow and build a simple contact form.

We start by creating a class that represents our form and create properties for each field.  Form fields can be one of the following types;

  • Integral – sbyte, byte, short, ushort, int, uint, long, ulong
  • Floating point – float, double
  • String
  • DateTime
  • Enum
  • List of enum

In the case of field types such as integral / doubles or datetime the value a user enters will be checked when they enter it to make sure it is valid and an error message will be displayed back to the user if the value is not valid.  In the case of an enum the user will be presented with only the options within the enum, via a set of buttons if the channel supports it, such as Facebook.

Once you have your fields defined, you then simply need to create a method that will return your form when called, from another dialog for example.  To do this we return a new instance of the FormBuilder class and set the type of form to our ContactMessage class.  Next we can define a message to be displayed to the user when the form is initiated. Finally you call the Build method which will generate the conversational flow required to complete your form.

Calling our Form

Now that we have our basic form, we need to call the form when our bot receives a message. To do this we need to amend our MessagesController as shown below to call our FormDialog.

Seeing our form running

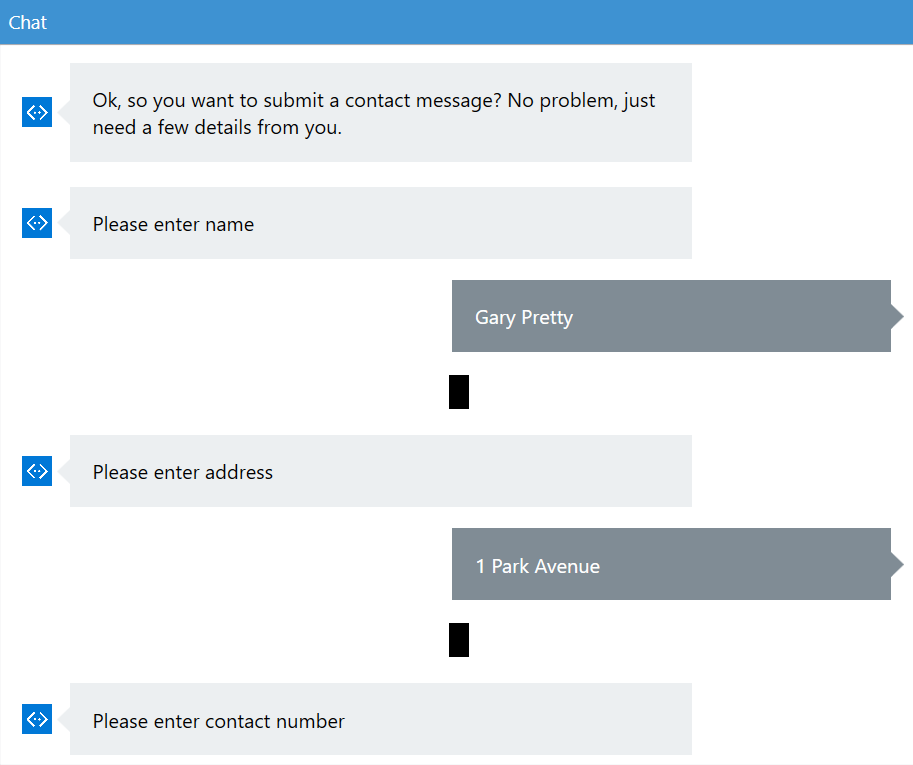

Now that we have our basic implementation in place, if we run the bot locally in the emulator and simply say ‘hi’, this will trigger the form and start the conversational flow with the user as shown below.

As you can see the form uses the names of the properties to prompt the user for their entry and will split property names such as “contactNumber” into “contact number”. It will also use the order in which the properties are defined to determine the default order in which they are asked for.

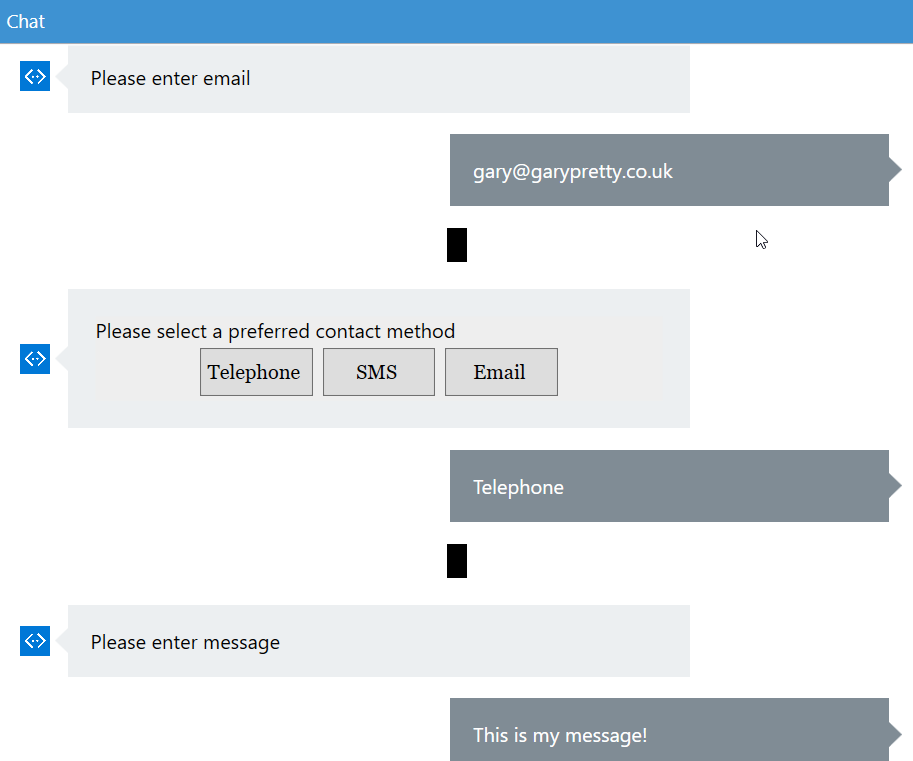

As mentioned earlier, as we are using an enum for the preferred method of contact, the user is presented with options in the form of buttons.

Once a user has completed all of the fields on the form they are then presented with an automatically generated confirmation prompt to ensure that they are happy with their input.

At this point if the user indicated that they wanted to change their input, by answering “No”, the form will even prompt them for which field they want to change.  There are also some handy commands a user can type when completing a form, including;

  • quit – The form dialog is exited
  • reset – The form dialog is re-started from the beginning

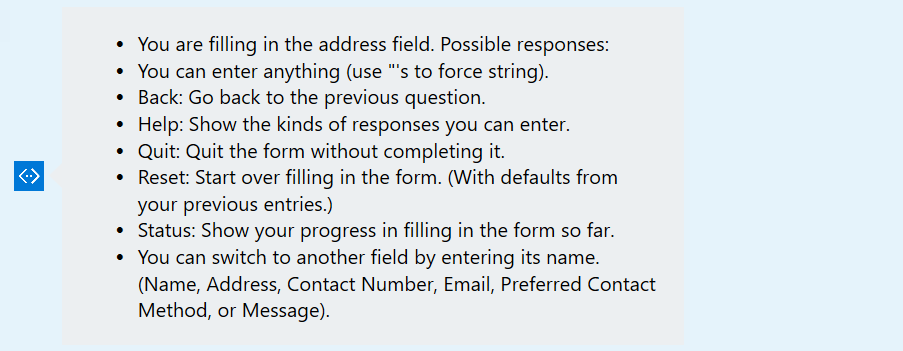

  • help – This will present the user will help in terms of the form they are completing, such as where they are in the form and what their options are, as well as a list of other commands they can use

Summary and what’s next

This post has shown how we can build a very basic form using the default behaviour available from the FormFlow form builder.  Hopefully you can see that this is already very powerful.  In the next post I will dig into how we can customise our forms, showing how we can control input prompt text, validation, adding conditional fields based on the user’s input and custom confirmation messages.

Continue with part 2 of this post now to learn about customising FormFlow!
